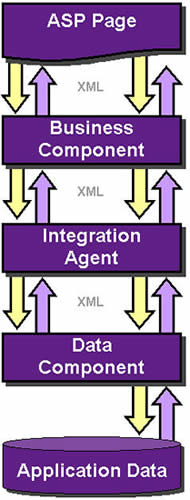

 USING XML BETWEEN LAYERS


Benefits




 Example


Eliminates passing object references between components.

Enhances reusability of object references between components.

Provides consistent data structures independent of backend data structures.

Provides an abstract layer between an application's business component layer and the data components.

Provides a more open, scalable architecture.

  ASP script calls Create method of Business Component.
  Business Component submits the request to the Integration Agent
  Integration Agent submits it to the Data Component
  Data Component constructs an empty search request XML document and returns it to the Integration Agent.
  Integration Agent returns it to the Business Component
  Business Component returns the search request XML to the ASP script
  ASP script populates the search request with search request data - account number, part number, quantity.

 ASP script calls CheckAvailability method of the Business Component
  Business Component submits the request to the Integration Agent
  Integration Agent submits it to the Data Component
  Data Component parses the request, builds a query, sends query to data system.
  Data system sends a response to the Data Component
  Data Component formats the XML response and returns it to the Integration Agent.
  Integration Agent returns response to Business Component.
  Business Component returns response to ASP script.
  ASP script parses the XML and sends the result to the browser as HTML.
